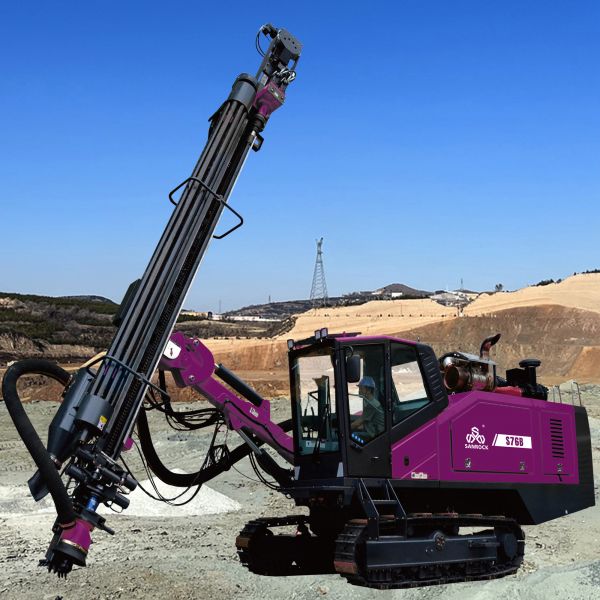

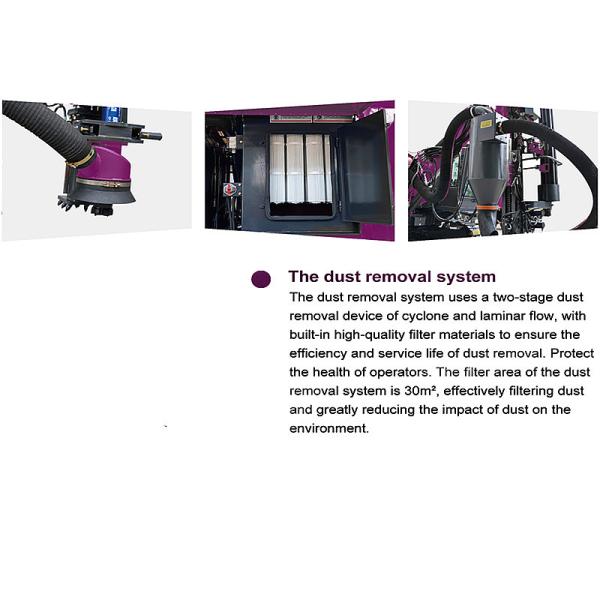

S76B is a fully hydraulic open-pit drill rig, including a cab, automatic rod-loading system and dust removal system.
Integrated DTH drilling rig are primarily used in open-pit mines, underground tunnels, quarries, and construction sites to drill through rock, ore, and other geological formations. Equipped with high-capacity hydraulic systems and durable drill bits, these rigs perform tasks such as blast hole drilling for controlled explosions, exploration drilling to assess mineral deposits, and production drilling for large-scale resource extraction. The rig is renowned for its high penetration rates, durability in challenging terrains, and ability to maintain stability during vertical or angled drilling. Equipped with automation features, it ensures operator safety, precision, and reduced environmental impact. Ideal for large-scale projects requiring deep, accurate drilling in solid rock formations.
Dual motor rotary reducer High torque rotary reducer, recommended to use 5”-6” DTHN hammer, by adjusting the speed and torque to achieve the working state, adapt to different working conditions of soft and hard rocks to maintain faster drilling. The power head is matched with a buffer shock-absorbing joint to reduce the impact force of drilling and protect the thread wear of the drill bit.
Automatic rod loading and unloading system Drilling with automatic rod loading and unloading improves safety, reduces labor costs and labor intensity. The rod storage can accommodate 5pcs rods, plus 1pc on the slide. The standard 5-meter 89 rod can reach a hole depth of 30 meters; the optional 4 meters 102 rod can reach a hole depth of 24 meters. A grease lubrication system is provided for automatic rod loading and unloading.
Cab and operating system The modern streamlined cab has a built-in reliable heating and cooling device, and the indoor noise is less than 85db. The operating system is ergonomically designed, with integrated left and right operating handles, clear working instruments, and a reversing image function, creating a convenient operating environment for the operator, a wide field of vision, and a comfortable and safe ride.
Product Description
| Product name | DTH Drilling Machine | | Application | Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works | | Key Selling Points | High efficiency, high production capacity,Competitive Price | | |

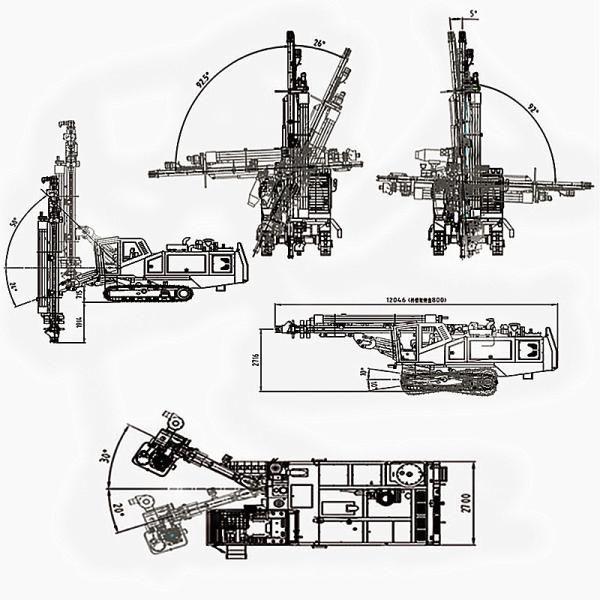

| Technical specifications | | General | | | | Weight | kg | 19000 | | Length | mm | 12000 | | Width | mm | 2700 | | Height | mm | 3100 | | Drill pipe changer | | | | Drilling diameter | mm | 138-203 | | Drilling depth | m | 30m | | Pipe diameter | mm | D89/D102 | | Pipe length | m | 5/4 | | Pipe capacity(Piece) | | 5+1 | | Hammer specs | | 5"/6" | | Air compressor | | | |
| Atlas Copco two-stage rotary screw air compressor | | Max. FAD | | Working pressure | | Feed | | Feeding stroke | | Drill arm pitch angle | | Drill arm swing angle | | Slide frame swing angle | | Slide frame pitch angle | | Engine | | Engine model | | Rated power | | Fuel tank capacity | | Rotary motor | | Rotation torque | | Rotation speed | | Lifting force | | Undercarriage | | Ground clerance | | Track oscilation | | Walking speed | | Grade ability | | Dust collector | | Collecting method | | | |
